Rovan

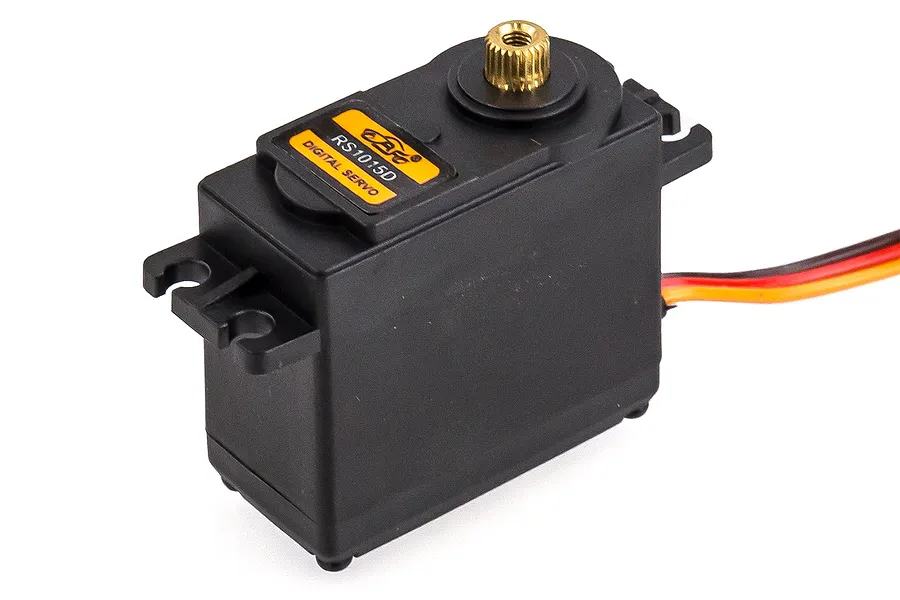

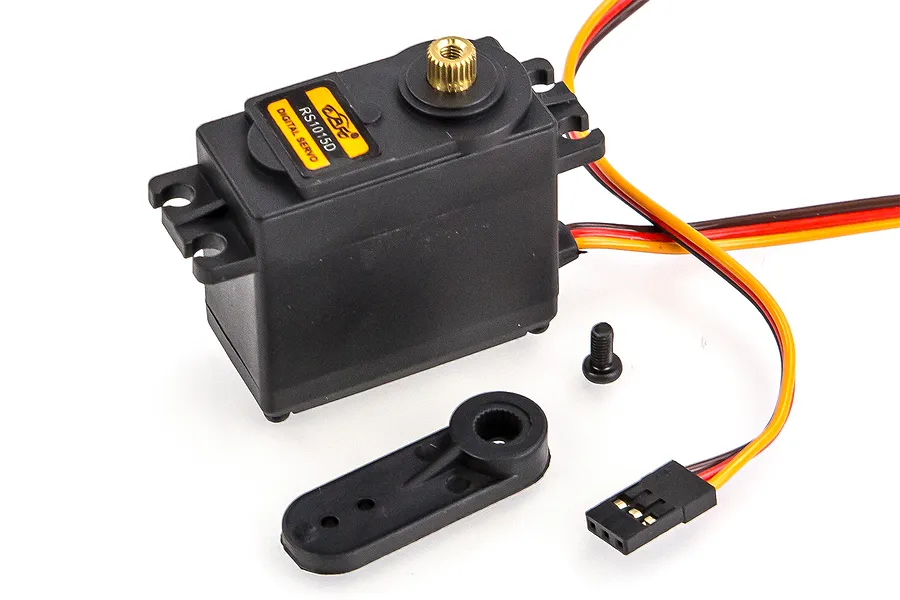

Rovan Standard 15kg Metal Geared RS-1015 Servo

Part no. 63003

3+ in stockNo reviews yet
1 / 2
1 / 2

$29.60

or 4 fortnightly payments of $7.40 with afterpay or PayPal, or zip

Will it fit?

Check fit: add your vehicle to My GarageFits 18 vehicles

Frequently bought together

Overview

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Specifications

SpecificationROV-63003 Servo Specifications
Total Height (A)44mm
Body Width (B)40mm
Below Mount (C)26.5mm
Above Mount (D)17.5mm
Total Length (E)54.5mm
Total Width (F)20mm

Servo

Servo
SizeConventionally sized servo namesStandard
Gear MaterialMetal
Waterproof CasingNo
Case MaterialPlastic
Height (A)44mm
Body Length (B)40mm
Bottom to Under Mount (C)26.5mm
Top to Under Mount (D)17.5mm
Length (E)54.5mm
Width (F)20mm
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline15
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.24
Signal TypeDigital

Compatibility
