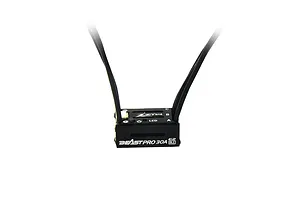

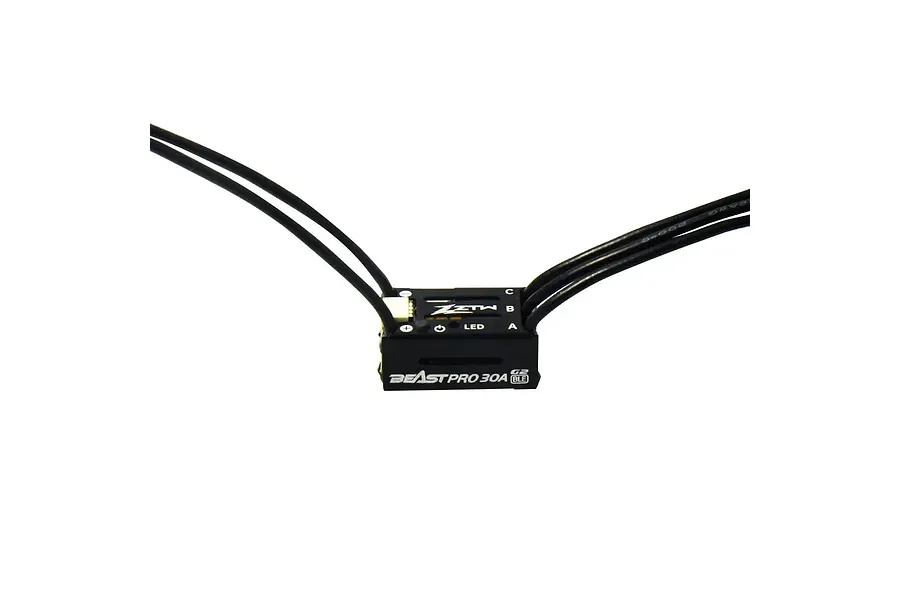

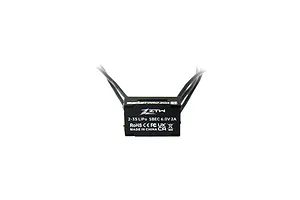

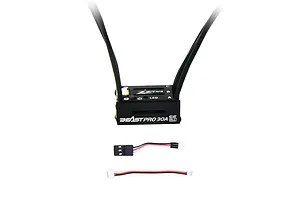

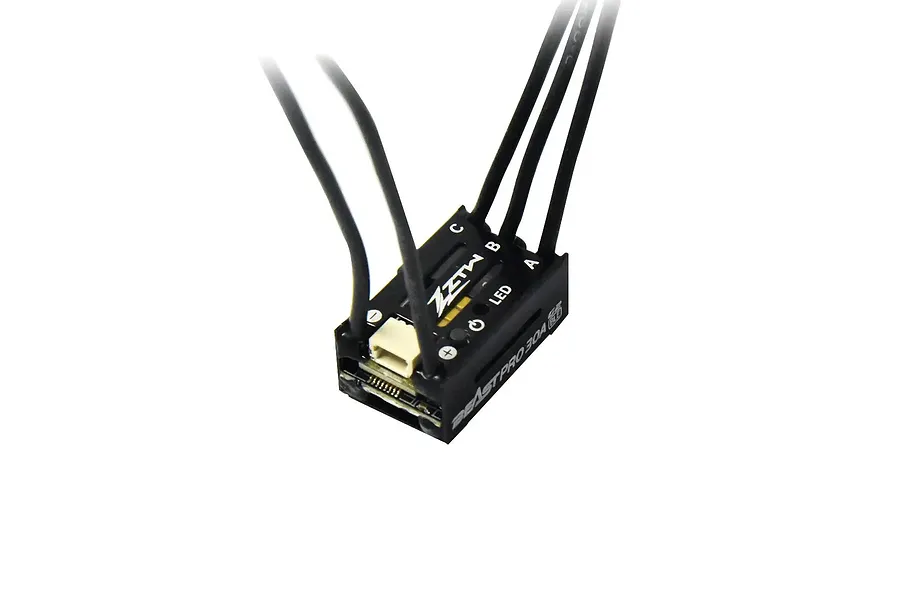

ZTW Beast Pro G2 30A Brushless ESC
Brand: ZTW
|
SKU: 4203013
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
The ZTW Beast Pro G2 30A Brushless ESC is a compact and powerful speed controller designed for 1/28 scale RC cars. Featuring a 32-bit microprocessor for precise control and compatibility with both sensored and sensorless brushless motors, it's perfect for both drifting and racing applications.
Features
- 30A continuous current handling
- Supports sensored and sensorless brushless motors
- Programmable via bluetooth with the Android & iOS app
- Firmware can be upgraded down the line
- Built-in 6.0V/2A BEC
- Compact and lightweight design
- Suitable for 1/24th, 1/27th, and 1/28th scale vehicles
- Genuine ZTW product
Specifications
- Length: 56mm (2.20 in)
- Width: 49mm (1.93 in)
- Height: 38mm (1.50 in)
- Weight: 10g (0.35 oz)
- Continuous/Peak Current: 30A/80A
- Waterproof: N/A
- Motor Limit: N/A
- BEC: 6.0V @ 2A
- Voltage Limit: 2-3S LiPo
- Programmable: Yes
- Scale: 1/28th
- Sensored: Yes
Included items
| Description | QTY |
|---|---|
| ZTW Beast Pro G2 30A Brushless ESC | 1 |
Specifications
| ESC (Electronic Speed Controller) | |
|---|---|
| For Motor Type: | Brushless |
| Max Voltage: | 11.1v |
| Waterproof Design: | Yes |
| Burst Amps: | 80 |
| Continuous Amps: | 30 |
| Motor Connectors: | |
| Battery Connector: | |
| LVC: | Yes |
| Programmable: | Yes |
| Cooling Method: | Air |
| BEC Voltage: | 6 |
| Dual Motor: | No |
