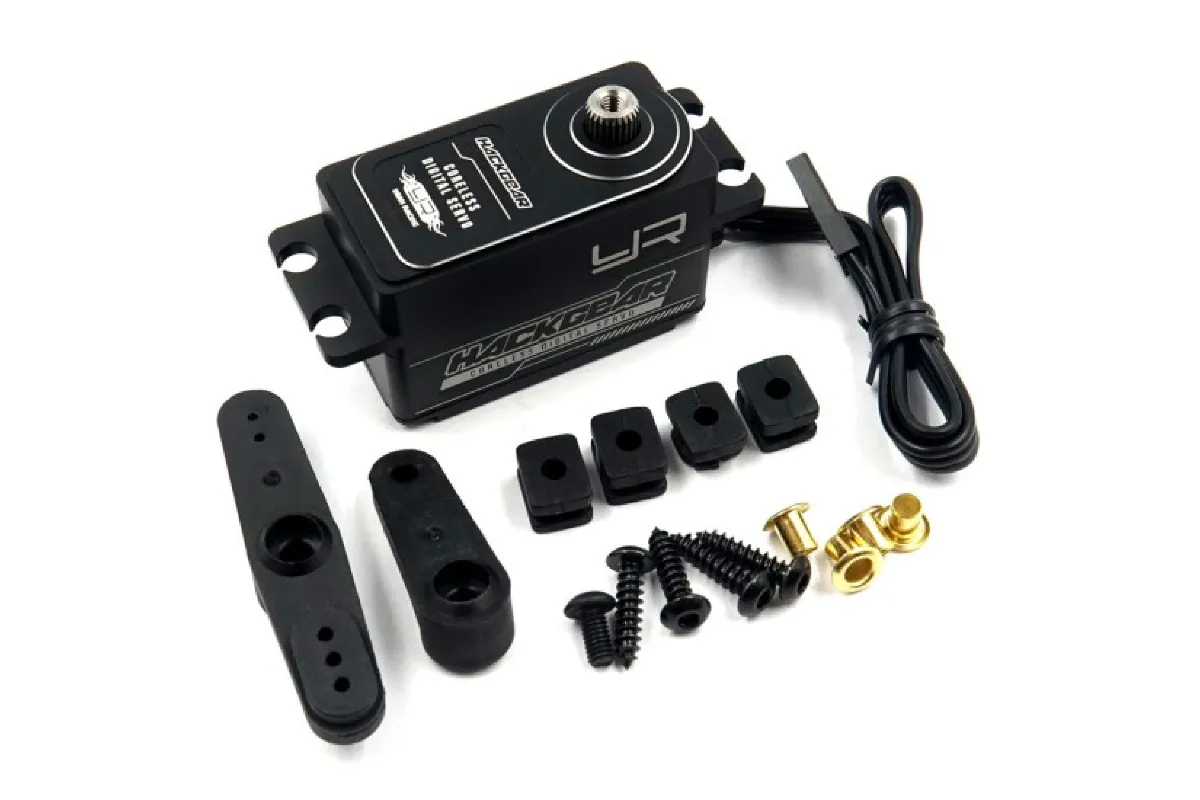

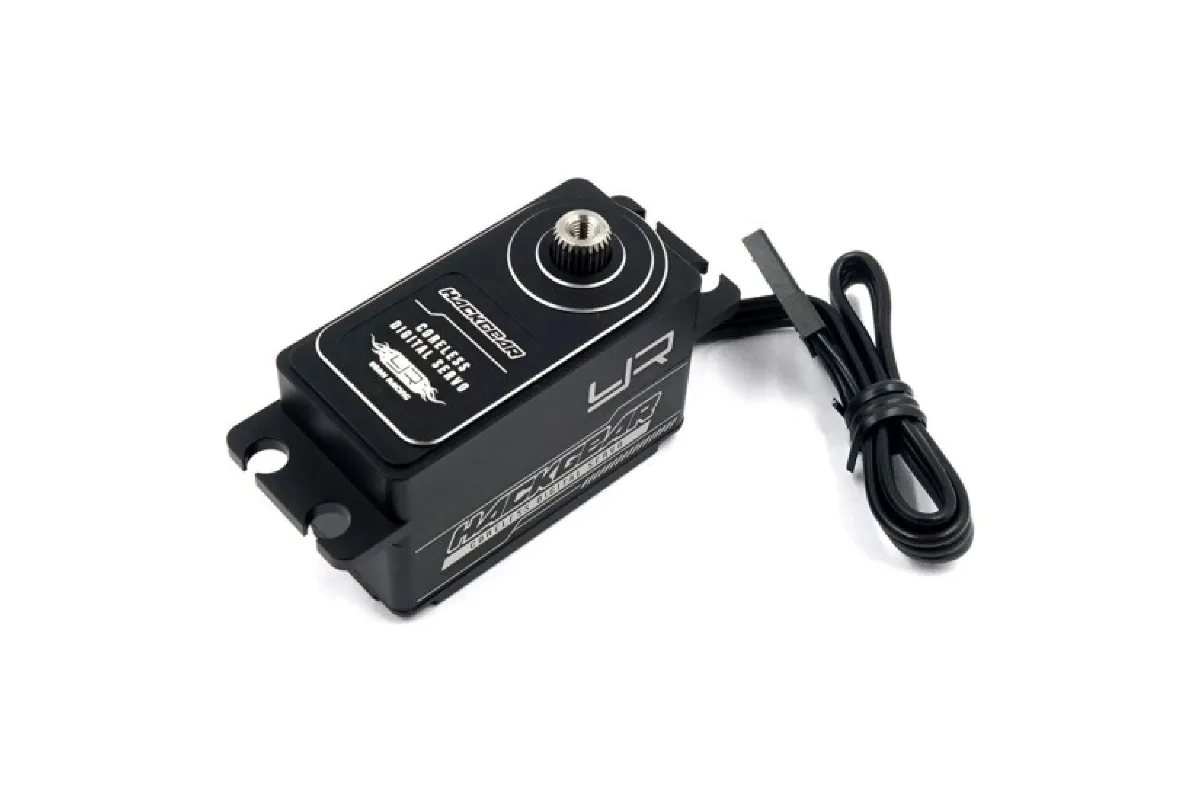

Yeah Racing Black Aluminium Low Profile Coreless 10kg 8.4v Titanium & Copper Geared Servo
Brand: Yeah Racing
|
SKU: YE-0033BK
Videos
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Yeah Racing Hackgear 10kg Coreless Servo Specifications
- Total Height (A) = 30.5mm
- Body Width (B) = 40.8mm
- Below Mount (C) = 19.25mm
- Above Mount (D) = 10mm
- Total Length (E) = 54.1mm
- Total Width (F) = 20.2mm
Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.
Specifications
| Servo | |
|---|---|
| Size: | Standard |
| 6.0v Torque: | 10kg |
| 6.0v Speed: | 0.09s |
| Gear Material: | Titanium & Copper |
| Waterproof Casing: | No |
| Servo Spline Count: | 25tooth |
| Signal Type: | Digital |
| Drive Motor Type: | Coreless |
| Case Material: | Aluminium |
| Rotational Degrees: | 120o (Normal) |
| Total Height: | 30.5mm |
| Body Length: | 40.8mm |
| Bottom to Under Mount: | 19.25mm |
| Top to Under Mount: | 10mm |
| Total Length: | 54.1mm |
| Total Width: | 20.2mm |
