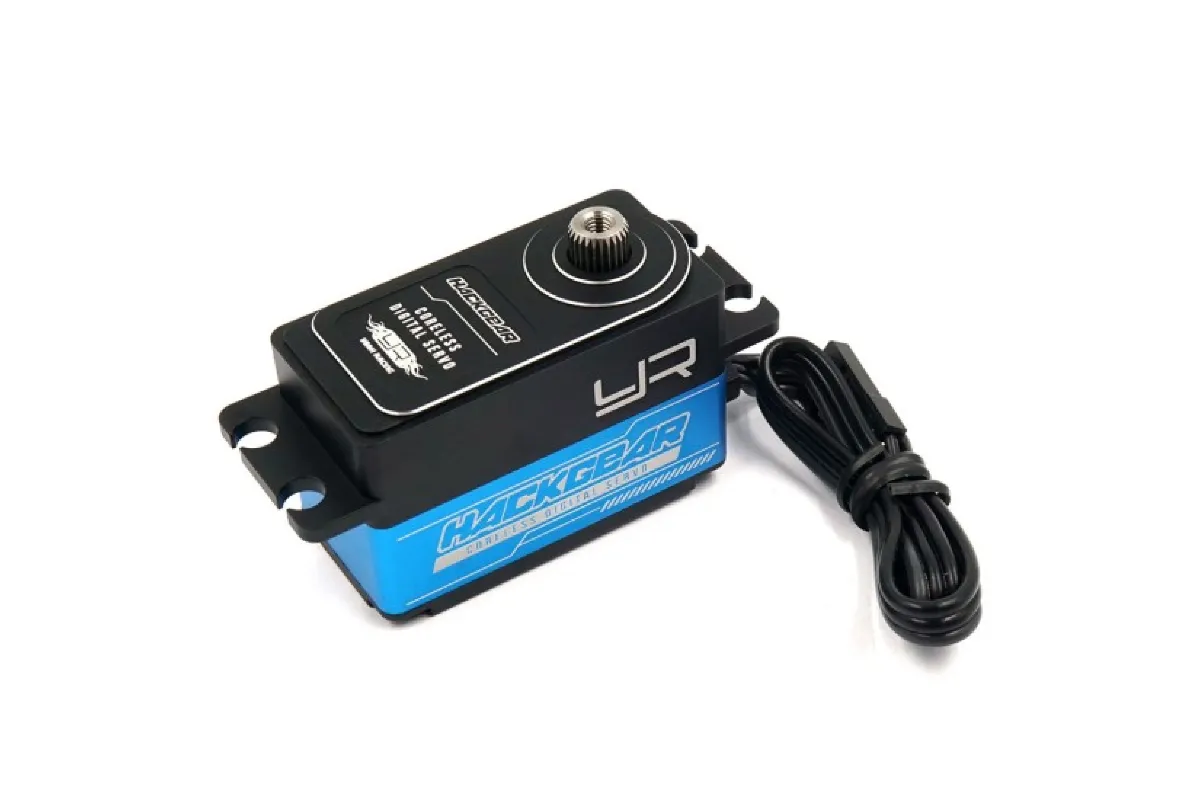

Yeah Racing Blue Aluminium Low Profile Coreless 10kg 8.4v Titanium & Copper Geared Servo

Brand: Yeah Racing | SKU: YE-0033BU
Yeah Racing
Videos
Video thumbnail of Yeah Racing Blue Aluminium Low Profile Coreless 10kg 8.4v Titanium & Copper Geared Servo
1 in stock
$119.85
Description

 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Yeah Racing Hackgear 10kg Coreless Servo Specifications
  • Total Height (A) = 30.5mm
  • Body Width (B) = 40.8mm
  • Below Mount (C) = 19.25mm
  • Above Mount (D) = 10mm
  • Total Length (E) = 54.1mm
  • Total Width (F) = 20.2mm
RC Hobby Servo Specifications

?

Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.

Specifications
Servo
Size: Standard
6.0v Torque: 10kg
6.0v Speed: 0.09s
Gear Material: Titanium & Copper
Waterproof Casing: No
Servo Spline Count: 25tooth
Signal Type: Digital
Drive Motor Type: Coreless
Case Material: Aluminium
Rotational Degrees: 120o (Normal)
Total Height: 30.5mm
Body Length: 40.8mm
Bottom to Under Mount: 19.25mm
Top to Under Mount: 10mm
Total Length: 54.1mm
Total Width: 20.2mm
