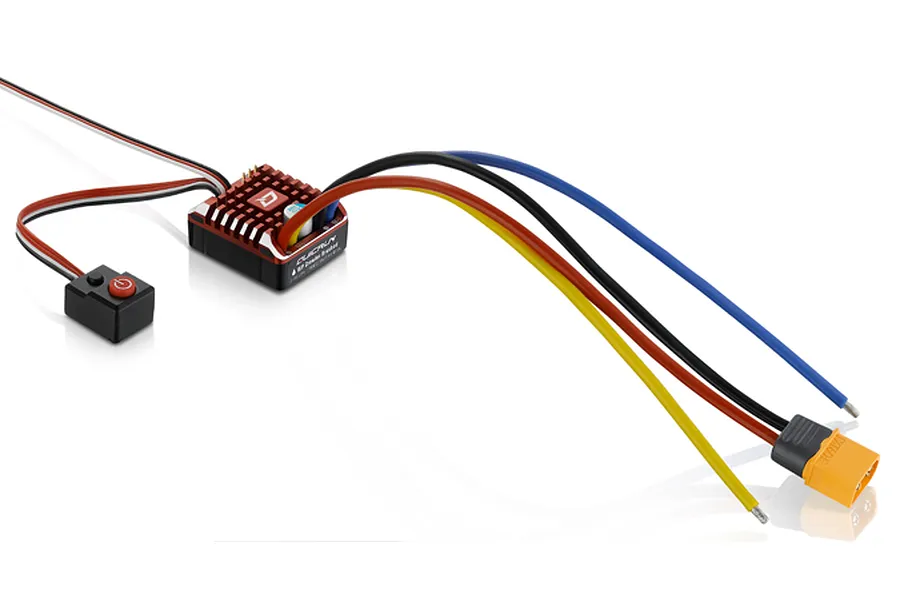

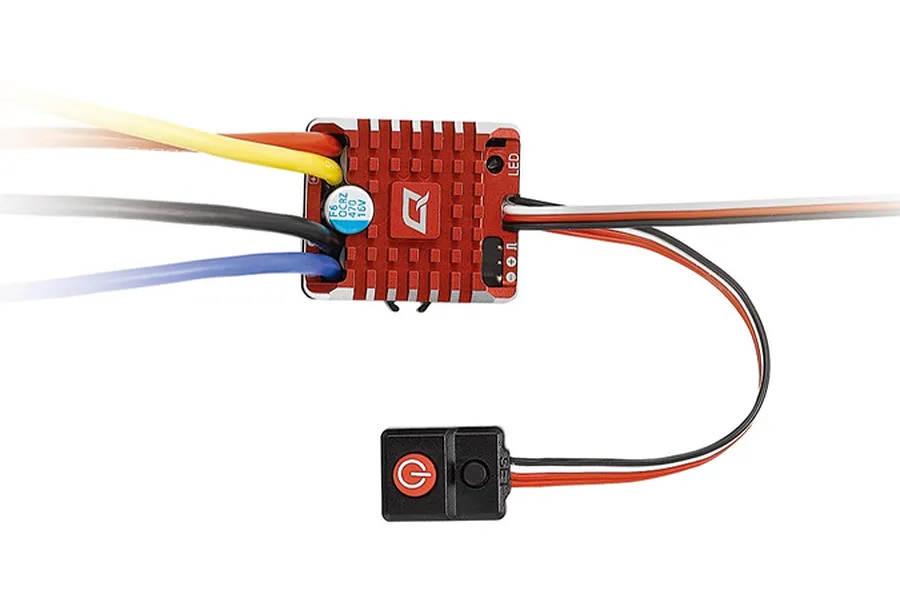

Hobbywing Quicrun 1080 Crawler 80A Waterproof Brushed ESC

Hobbywing Quicrun 1080 Crawler 80A Waterproof Brushed ESC image 21430

Hobbywing Quicrun 1080 Crawler 80A Waterproof Brushed ESC

Brand: Hobbywing | SKU: 30112750

discontinued

write a review

Description

Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Water-proof and dust-proof, suitable for all weather races.

Small size, with built-in capacitor module.

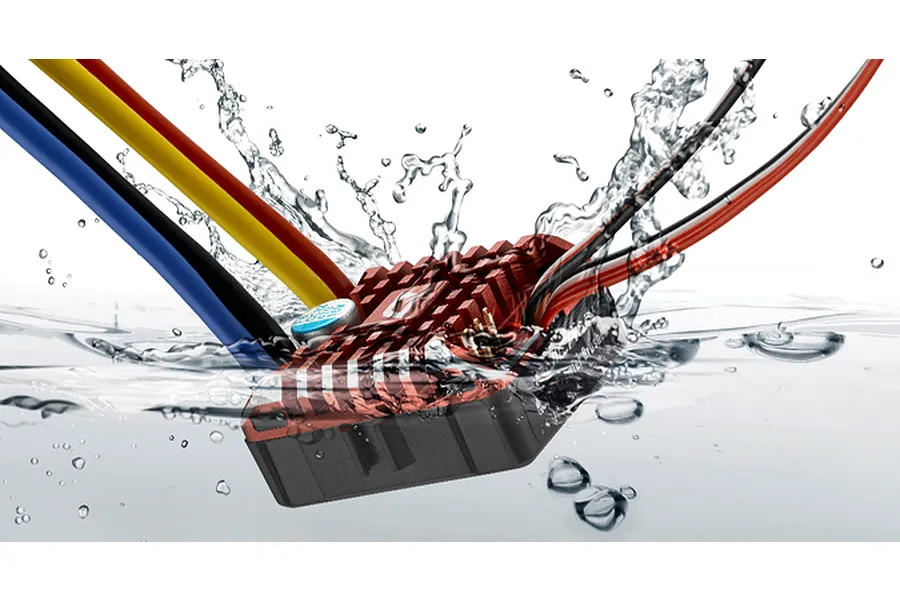

100% Waterproof.

15 programmable parameter items.

PWM Frequency: 1K/2K/4K/8K/16K.

Freewheeling (DEO) capability.

Drag brake rate in 9 levels (adjustable).

Electronic switch.

Aluminum case for great heat dissipation.

Great current endurance capability.

Great 3A 6.0V-7.4V built-in BEC output capacity.

Automatic throttle range calibration, easy to use.

Multiple protections: Over Voltage Protection, Low voltage cut-off protection for battery. Over-heating protection, Throttle signal loss protection, and much more

Specifications

ESC (Electronic Speed Controller)

Battery Connector: N/A
Dual Motor: No
Motor Connectors: Basic Bullet
BEC Voltage: 6V, 7.4V
Cooling Method: Air
Waterproof Design: Yes
Programmable: Yes
LVC Low Voltage Cut-Off. Required for Lithium batteries.: Yes
Max Voltage: 11.1V
