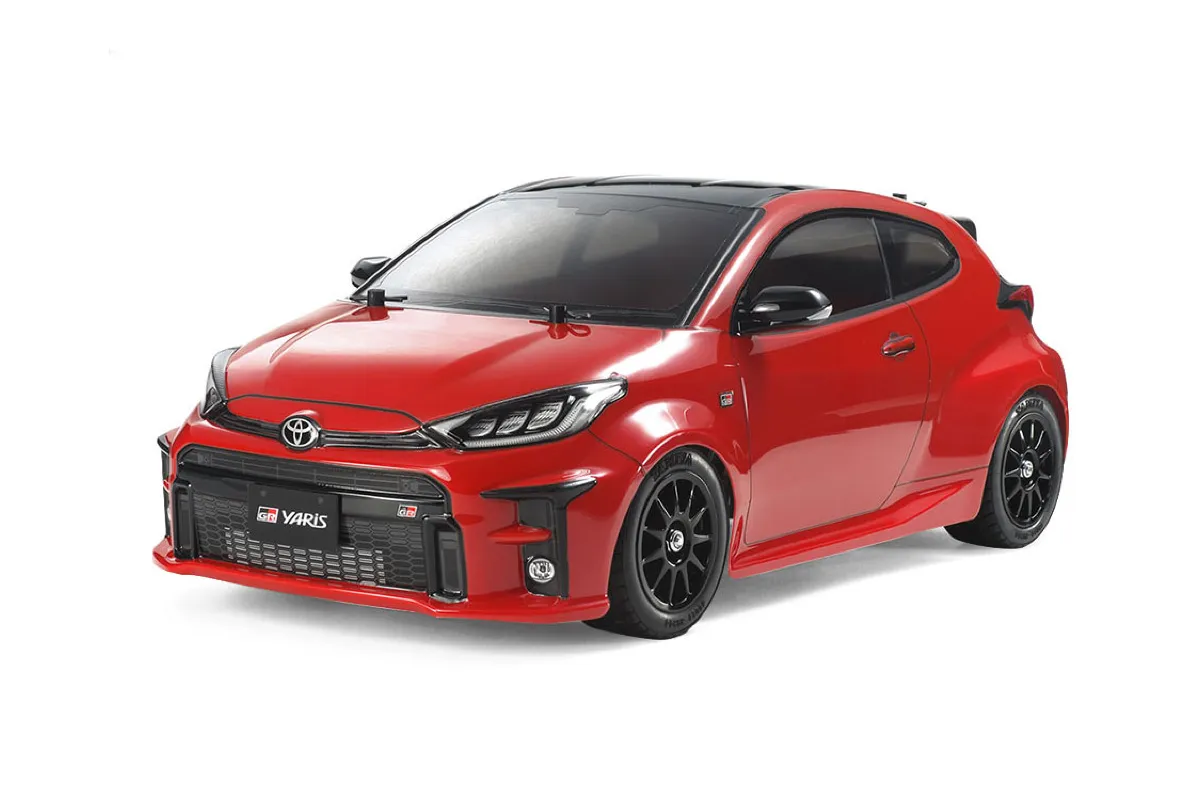

Tamiya M-05 Toyota GR Yaris RC Car Electric 2WD 1/10 Scale Kit
Tamiya M-05 Toyota GR Yaris RC Car: A Fun and Agile RC Car for On-Road Adventures!
This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.
- Highly detailed 1/10th scale self assembly kit
- M-05 Front Wheel Drive chassis system
- Light-weight, durable and easy to assemble resin monocoque chassis

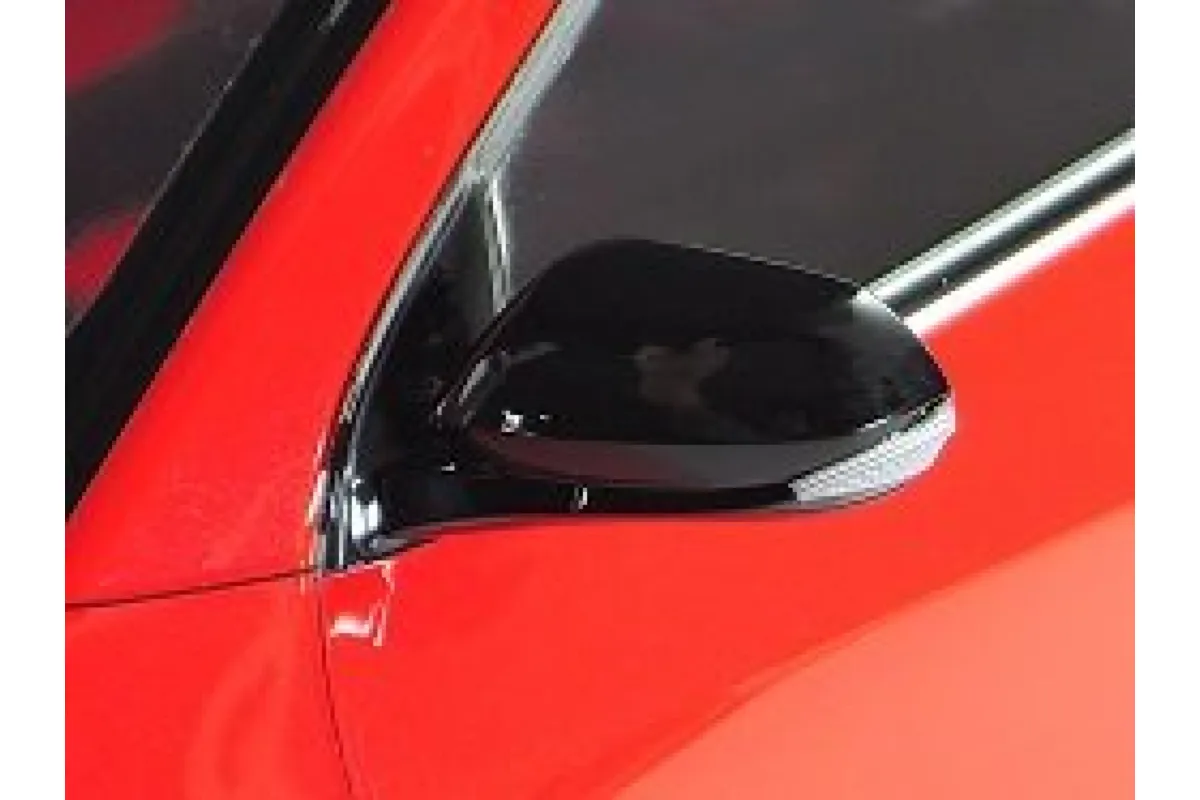

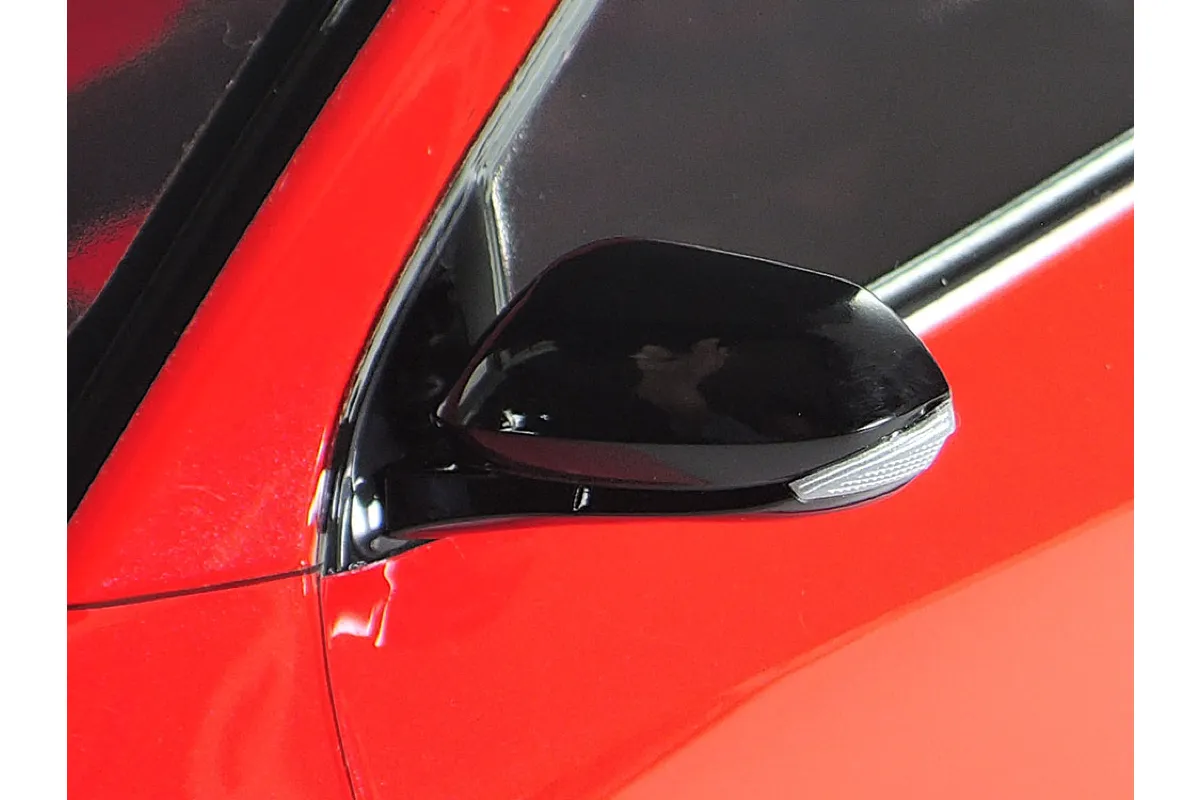

- Separate injection moulded parts are included to recreate side mirrors.
- Gearbox, battery pack, receiver, servo & ESC are positioned for optimum weight distribution and low centre of gravity

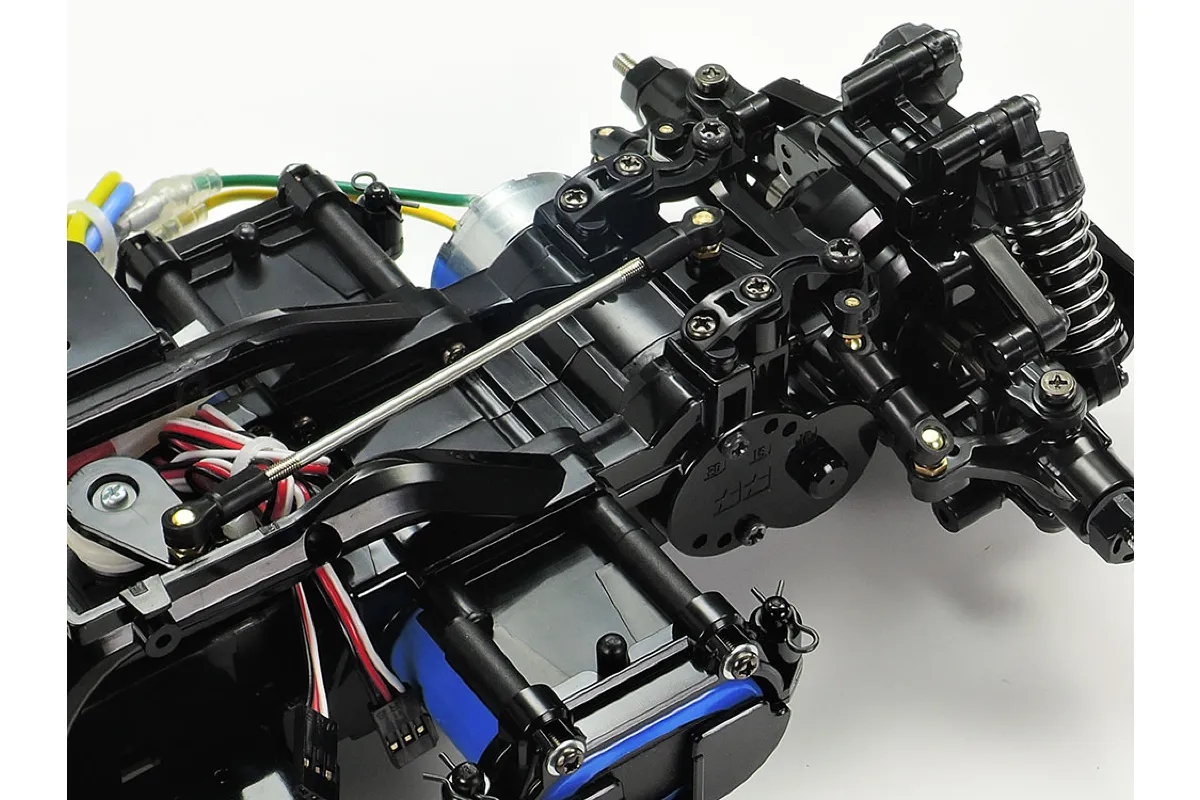

- 3-Piece Tie-Rod steering linkage offers sharp cornering performance
- Popular Alfa Romeo MiTo polycarbonate bodyshell

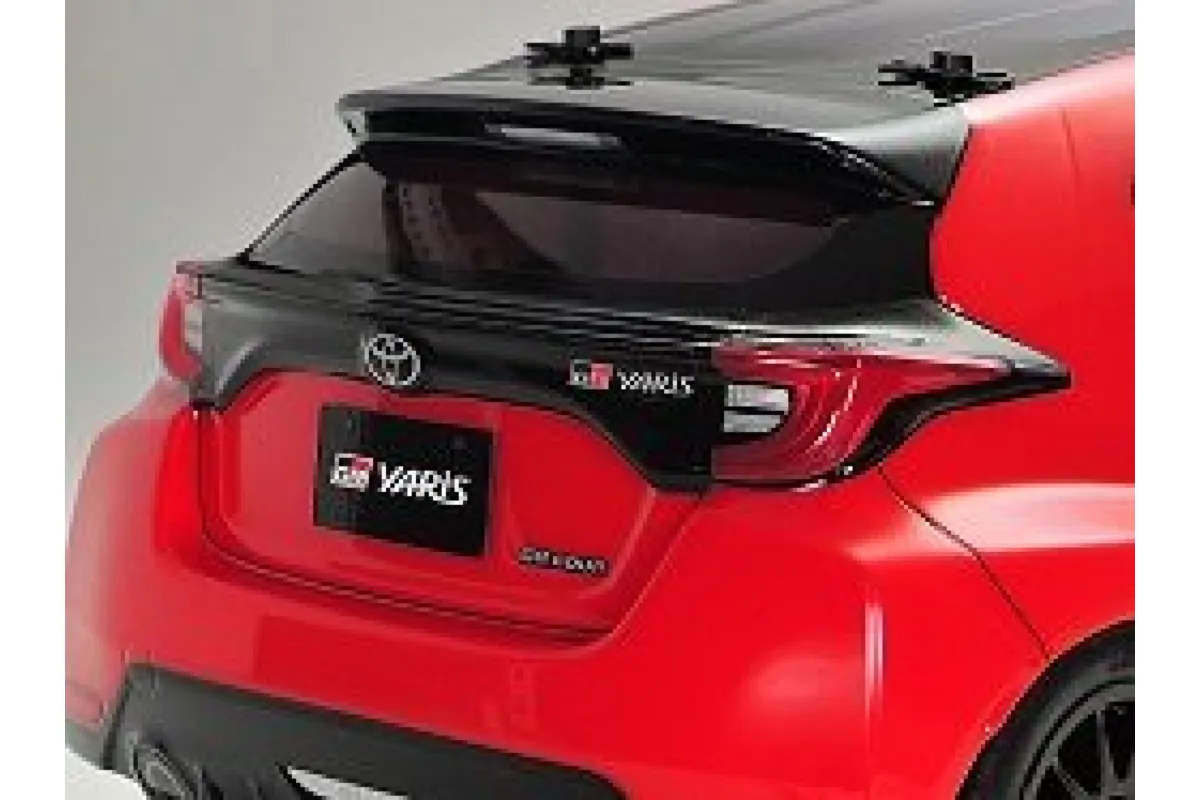

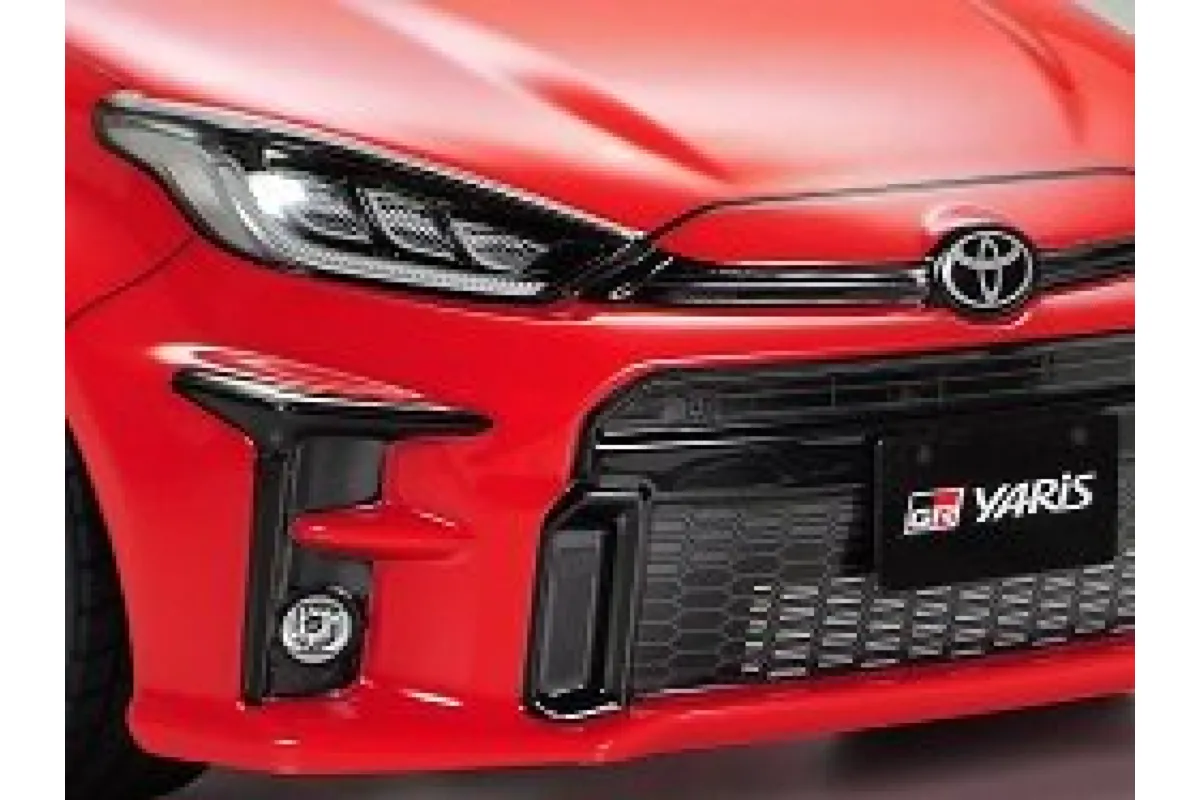

- Unmistakable body shape is accurately reproduced

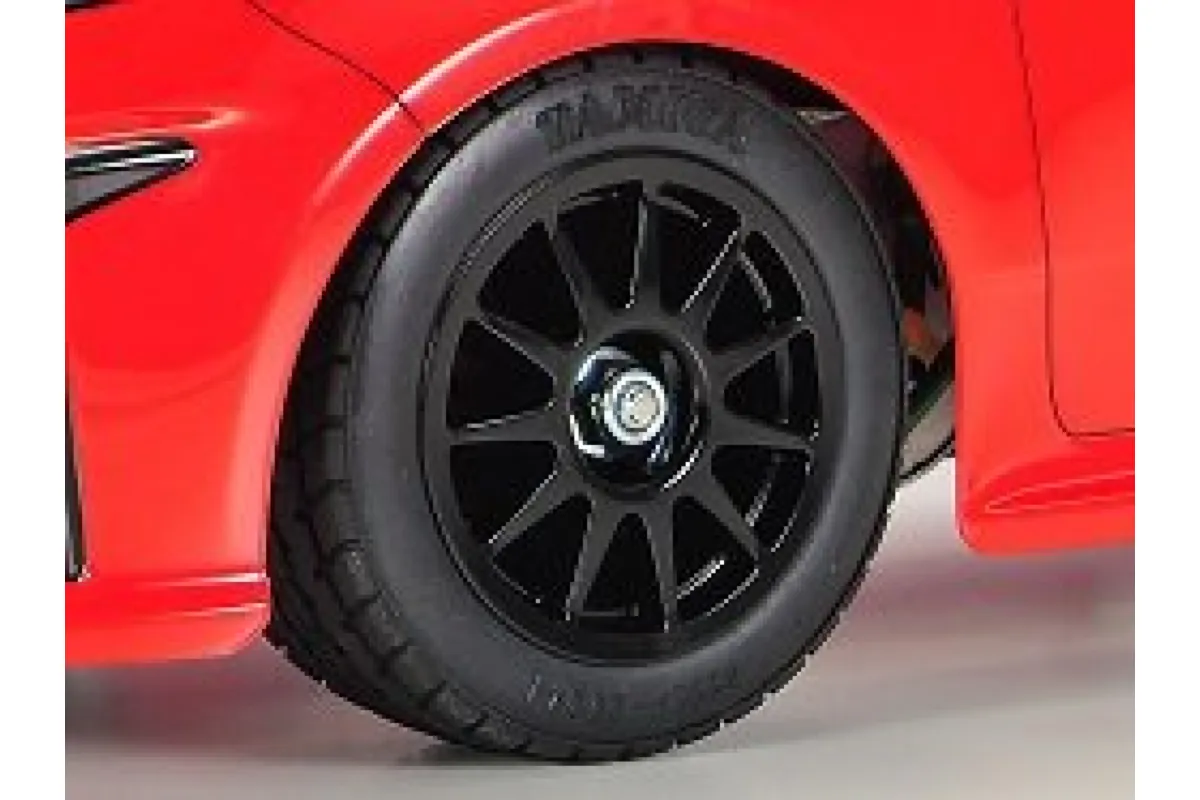

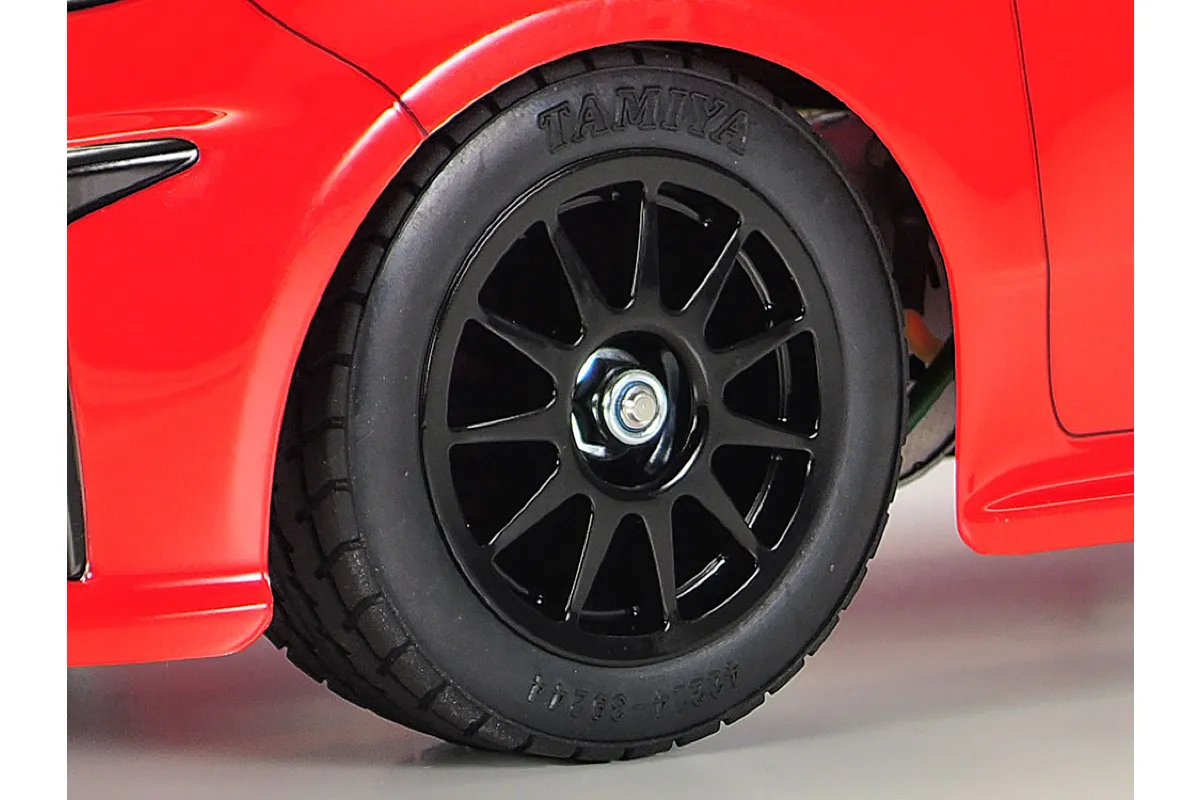

- 11-spoke wheels are moulded in black and paired with 60D radial tyres
- Includes 540-brushed type motor
- This model uses the 239mm length wheelbase
- The popular M-05 chassis has a wide range of Hop-Up Option parts available to tune the chassis
- Comes with marking stickers to decorate the body
- Full assembly manual
Nimble handling and precise control is easy with the M-05 chassis. The lightweight and durable semi-monocoque frame, combined with a low centre of gravity and responsive suspension, provides exceptional agility and stability. Realistic tyres and 11-spoke wheels complete the package.
- Dimensions
- Length: 371mm (15.1")
- Width: 168mm (6.69")
- Height: 137mm
- Wheelbase: 239mm (9.04")
- Tyres
- Tread: 138mm (5.43") Front & Rear
- Width: 25mm (0.98") Front & Rear
- Diametre: 59mm (2.32") Front & Rear
- Engine
- Engine Mount: Front
- Wheel Drive: Front
- Differential
- 3-Piece Bevel Gear
- Gear Ratio: 5.8:1
- Drive Line: Closed Gear Box
- Steering & Suspension
- 3-Piece Tie-Rod
- Friction Dampers: Front & Rear

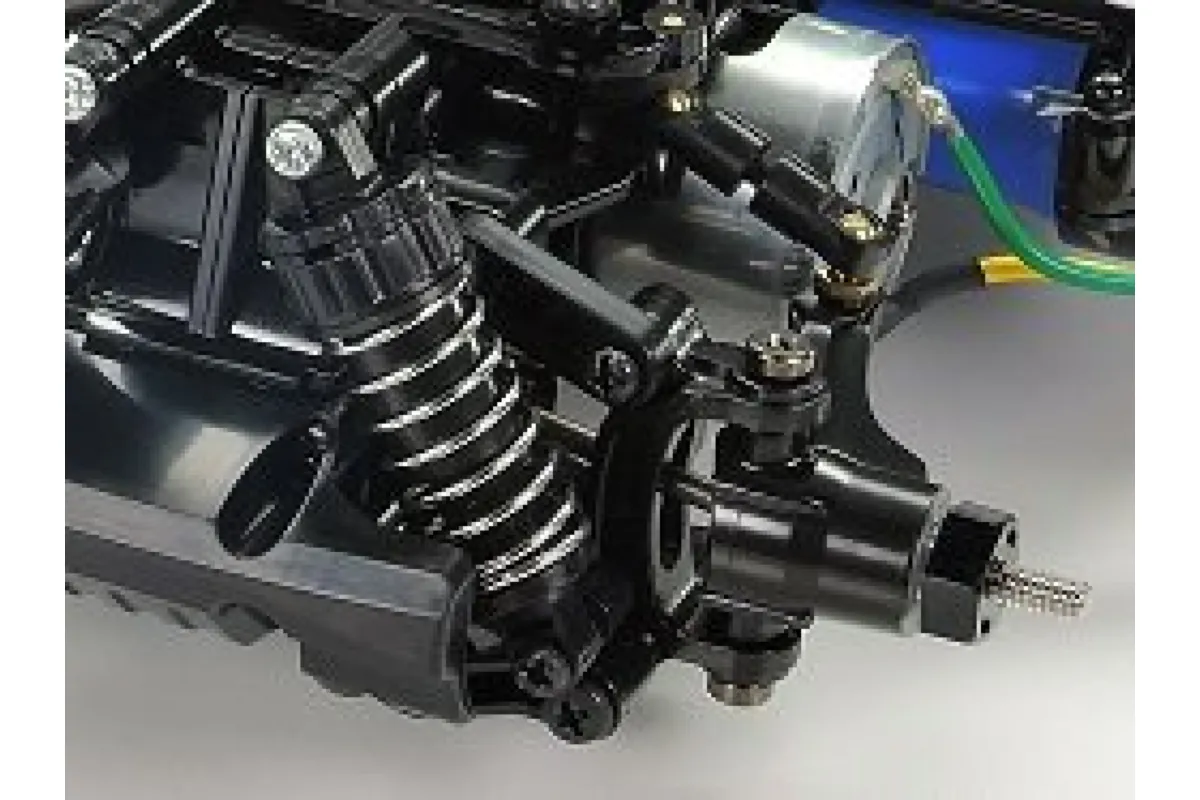

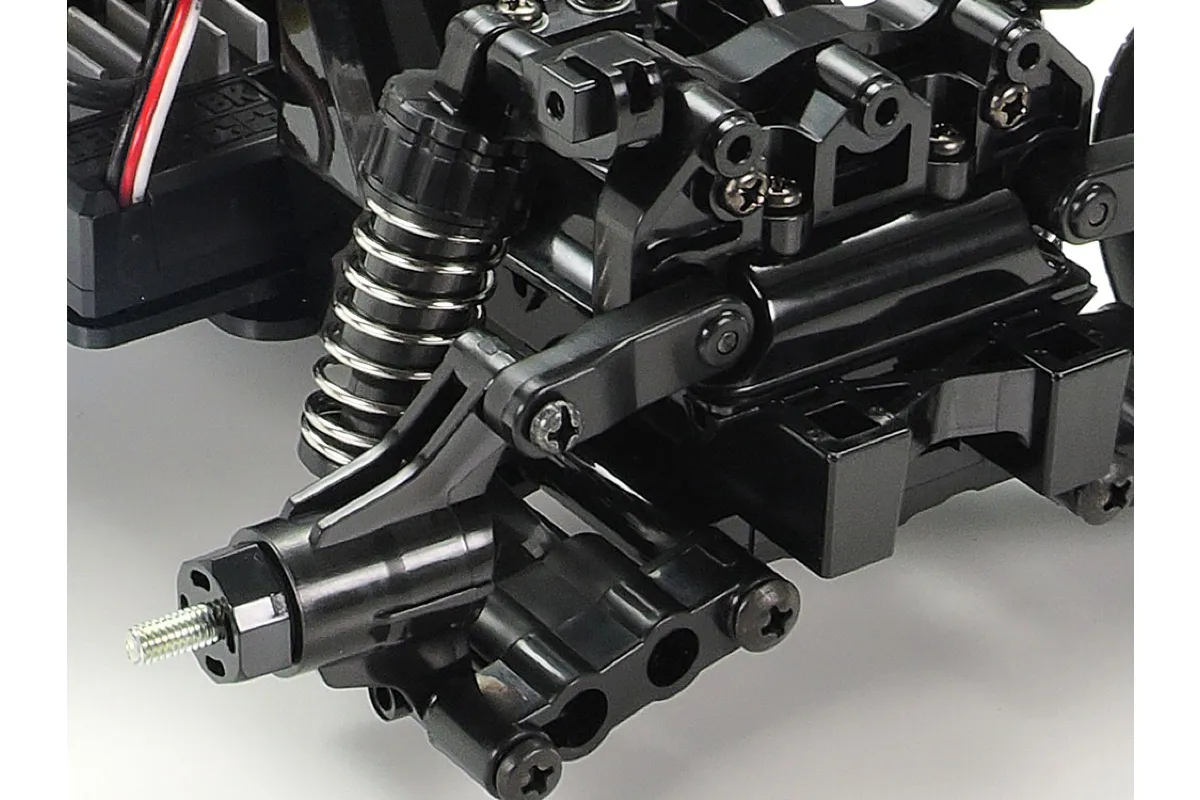

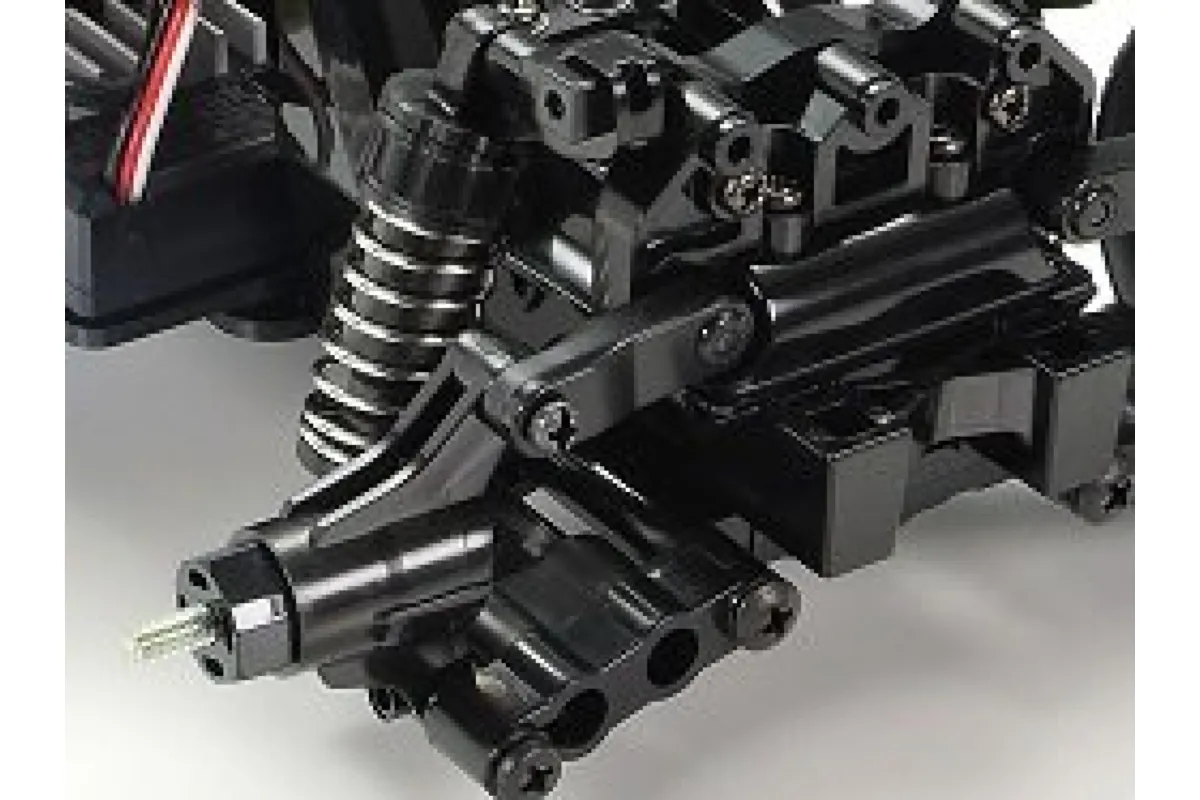

- 4-Wheel Independent Double-Wishbone Suspension
- 3-Piece Steering Linkage
- 3-Piece Steering Tie-Rod

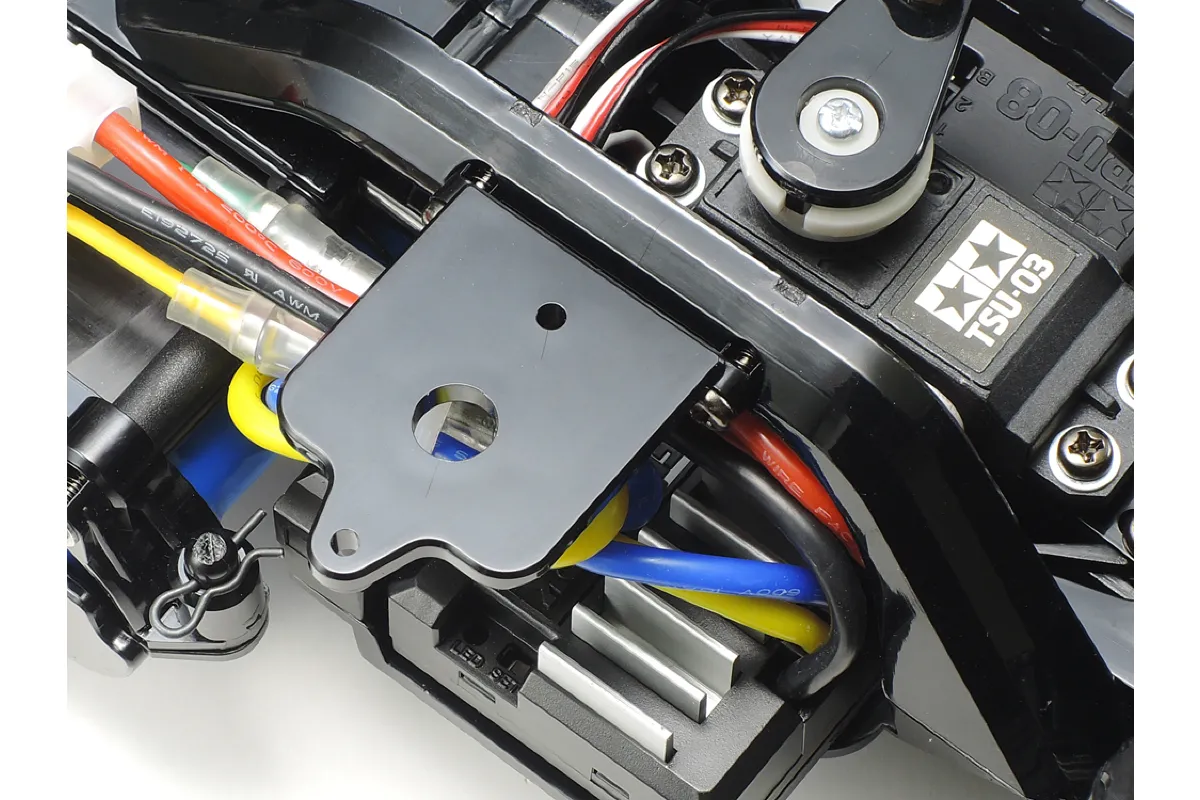

- Electronic Speed Controller
- Model: Tamiya TBLE-02S Sensored Brushless ESC
- Sensored: Yes
- Control System: High Frequency Wave Drive System
- Max Cont. Current (FET Spec): Forward 60A
- Output
- Forward: 100%
- Reverse: 50%
- Compatible Motor: Brushless / Brushed over 25 Turns
- Receiver Output Voltage: 6.6-7.2V
- Dimensions: 45x34x24mm
- Weight: 50.8g
- Requires Receiver w/ BEC
- 1x 1/10 Toyota GR Yaris 2WD RC Kit
- 1x TBLE-02S Sensored Brushless ESC
- Type 540 Brushed Motor
- 1x Decals
- 2Ch+ Transmitter & Receiver
- Standard Servo
- 7.2V NiMH Stick Battery w/ Tamiya Plug & Compatible Charger
- Paint
- Tools
| RC Car | |
|---|---|
| Scale: | 1/10 |
| Completion: | Kit |
| Skill Level: | Intermediate |
| Power Source: | Electric Brushed |
| Chassis Type: | Car |
| On/Off Road: | On Road |
| Drivetrain: | 2WD |
| Factory Specs | |
|---|---|
| Max LiPo Power: | |
| Battery Connector: | |
| Front Shock Oil: | |
There are no reviews for this product yet.
